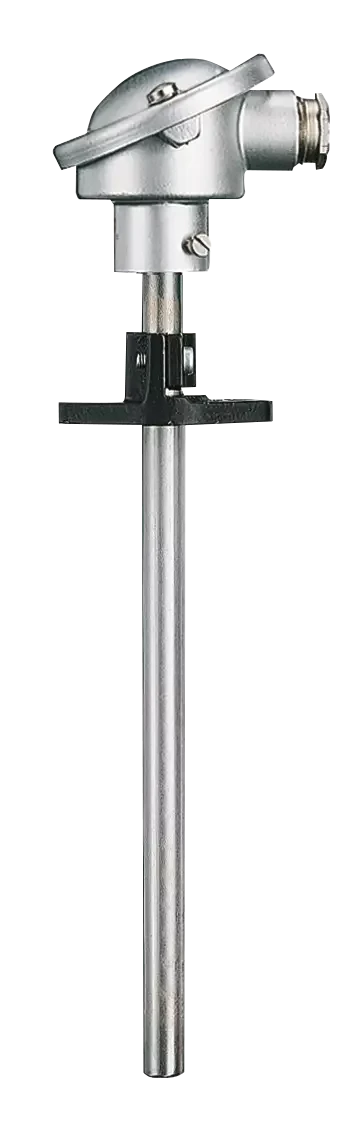

JUMO AutomationJUMO Screw-in and Insertion Resistance Thermometers
Product Series: JUMO Etemp B Insertion Thermometer with Type B Terminal Box, Data Sheet No. 902120, 902123; Insertion Thermometer with J-Type Terminal Box, Data Sheet No. 902130; Screw-in Thermometer for direct threaded installation. Performance & Configuration: Temperature range -50 to +600°C; select models: -50 to +400°C. Sensing elements: Pt100 and Pt1000. Measurement circuit: 1/2 wire. Protection sheath: Stainless steel. Ingress protection rating: IP65. Compatible with temperature transmitters and replaceable inserts. Calibration certificate available. Applications: Industrial plants, thermal processing facilities, drying systems, building material machinery, mechanical engineering, temperature control instruments, conveyor systems, and textile industry.
Technical Specifications
- Data Sheet ID902120、902123、902130
- Temperature Range-50~+600°C (some models: -50~+400°C)
- Temperature sensorPt100, Pt1000
- Measure Circuit1 pcs / 2 pcs
- Structure TypeScrew-in, Insert
- Junction Box TypeType B Junction Box, Type J Junction Box
- Process ConnectionG1/2, G1, NPT threads; flange and ferrule threads
- Conduit MaterialStainless Steel
- Ingress Protection RatingIP65
- Optional ConfigurationTemperature Transmitter, Replaceable Insert
- VerifyCalibration Accreditation, DAkkS Calibration Services
Key Advantages
Complies with DIN EN 60751 standard; excellent temperature measurement linearity and interchangeability.
Pt100 and Pt1000 components are optional, compatible with various transmitters and acquisition systems.
Replaceable core design allows maintenance without removing the protective tube.
Type B and Type J junction boxes available; ample field wiring space
IP5 protection rating; suitable for workshop and outdoor environments
Provide metrological certification and DAkkS calibration services
Use Cases
Factory Engineering and Thermal Processing Plant
Drying Systems and Construction Building Equipment
Mechanical Engineering and Temperature Control Instruments
Conveying Systems for the Textile Industry
Selection Parameter Table for Screw-in and Insertion-type RTDs
← Swipe left or right to view full parameters; first column is fixed
| Product Name | Data Sheet ID | junction box | Temperature sensing element | Suitable Occasions |
|---|---|---|---|---|
| Insertion Thermal Resistance | 902120 | Type B Junction Box | Pt100 | Factory Engineering, Thermal Processing Plants, Drying Systems |
| JUMO Etemp B Insertion Resistance Thermometer | 902123 | Type B Junction Box | Pt100, Pt1000 | Factory Engineering, Drying Systems, Building Materials Equipment |
| Insertion Thermal Resistance | 902130 | J-type junction box | Pt100 | Mechanical Engineering, Temperature Control Instruments |
| Insertion Thermal Resistance | 902130 | J-type junction box | Pt100 | Conveyor systems, textile industry |
Specific model and specifications are subject to confirmation in the actual order.
Download
JUMO Screw-in and Insertion Resistance ThermometersProduct Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
JUMO Screw-in and Insertion Resistance ThermometersProduct Catalog
PDF Document · Free Public Download
