Permanent Magnet Synchronous Motor

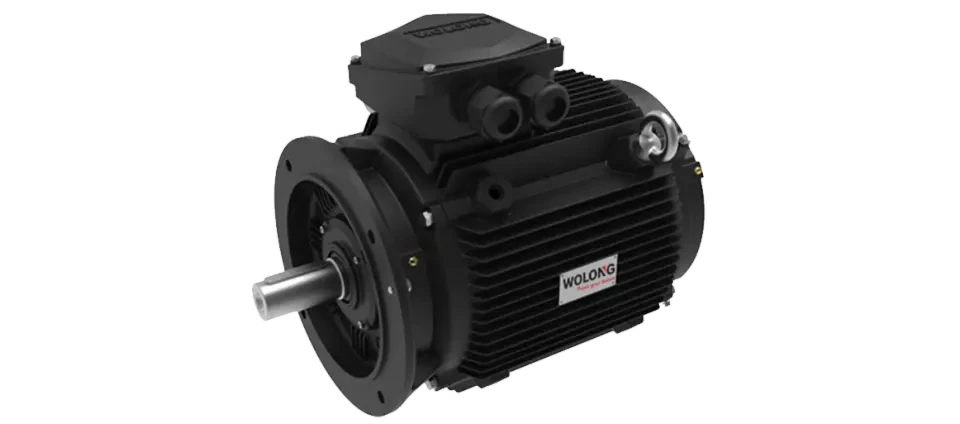

WOLONGWolong Electric Drive TYCP5 Series Low-Speed Permanent Magnet Direct-Drive Motor
The TYCP5 series low-speed direct-drive permanent magnet synchronous motor is built on core technologies of permanent magnet drive and high energy efficiency. The system comprises a permanent magnet variable-frequency motor and a dedicated variable-frequency control unit, replacing the traditional combination of asynchronous motors, gear reducers, and auxiliary equipment. This integration enhances reliability and transmission efficiency. These motors enable S-curve starting under low-speed, heavy-load conditions, offering key advantages such as low speed, high torque, high transmission efficiency, smooth operation, compact structure, and minimal space requirements. The accompanying dedicated variable-frequency control unit utilizes vector control for precise torque management, delivering high efficiency, excellent electromagnetic compatibility, and strong environmental adaptability. Ideal for continuous-duty machinery requiring variable speed and high torque, this product is suitable for applications including mixing tanks, belt conveyors, elevators, ball mills, crushers, and cooling towers. It is widely used across industries such as pharmaceuticals, building materials, mining, coal, shipping, metallurgy, chemical processing, power generation, and industrial automation.
Technical Specifications
- Housing Number180–560 (customizable)
- Rated Power1.1~900kW
- Rated Speed25~50 rpm
- Rated Voltage380V / 660V
- Work scheduleS1 (optional S2, S3)
- Efficiency Rating1-level energy efficiency
- Installation MethodV1 (optional: B3, etc.)
- Insulation ClassGrade F (H Grade optional)
- Ingress Protection RatingIP55 (optional: IP56, IP65, IP66)
- Cooling MethodIC410, IC70W (optional: IC418, IC416, IC71W)
- Chassis MaterialCast Iron / Steel Plate
- Bearing lubricationGrease lubricated, with grease injection and drainage device
- Protection deviceOptional PT100, PTC
- Maximum Torque Ratio 1.8
Key Advantages
Energy Efficient: Eliminates transmission losses from gearboxes and auxiliary equipment, maintaining high efficiency across a wide load range.
Low-speed, high-torque: Enables smooth S-curve startup under heavy low-speed loads.
Compact design: highly integrated, space-saving, and smooth operation.
Vector Control: Achieves precise torque control with dedicated variable frequency drives.
Robust environmental adaptability: excellent electromagnetic compatibility with optional protection and cooling configurations.
Customizable options: installation method, cooling system, shape, and mounting dimensions can be tailored to your requirements.
Use Cases
Mixing Tank and Reactor
Belt Conveyor
Elevator
Ball Mill
Crushing Machinery
cooling tower
Pharmaceuticals, building materials, mining, coal, shipping, metallurgy, chemical industry, and power sectors
Select by Voltage
View rated currents for each voltage- Rated current range
- 2.3~1597.7 A
- Override the extreme value bins
- 14-speed
For domestic low-voltage grid standards, 3 kW and below use Y connection, while over 3 kW uses Δ connection, suitable for most factory distribution scenarios.
- Rated current range
- 1.3~913 A
- Override the extreme value bins
- 14-speed
Common medium-voltage distribution levels for coal mines and large industrial sites; at the same power level, current is approximately 0.58 times that of 380V systems, reducing cable cross-section and line losses.
Output power, speed, efficiency, power factor, and torque for the same model remain constant regardless of voltage; only the rated current is recalculated as I = IN × 380 / U. Dual-voltage motor models (380/660V and 660/1140V) are switched via terminal block jumpers. The 1140V model is designed for high-voltage underground coal mine applications and requires verification against its explosion-proof certification scope. Variable frequency drives (VFDs) are categorized by supply voltage; please specify the site's supply voltage, number of phases, and frequency when ordering.
TYCP5 Series Low-Speed Permanent Magnet Direct-Drive Motor Selection Parameters Table (Categorized by Rated Speed)
← Swipe left or right to view full parameters; first column is fixed
| Model | Housing Size | Power (kW) | Speed (r/min) | Current 380V(A) | Current 660V(A) | Efficiency (%) | Power Factor | Rated Frequency (Hz) | Rated Torque (N·m) | Maximum Torque Ratio | Weight (kg) | Accompanying Inverter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TYCP5-450-15-25 | 450M | 15 | 25 | 27.7 | 15.8 | 91.3 | 0.95 | 8.3 | 5730 | 1.8 | 2204 | WD100-T3-015G/018P-B |
| TYCP5-450-18.5-25 | 450M | 18.5 | 25 | 34 | 19.4 | 91.9 | 0.95 | 8.3 | 7067 | 1.8 | 2312 | WD100-T3-018G/022P-B |
| TYCP5-450-22-25 | 450L | 22 | 25 | 40.2 | 22.9 | 92.5 | 0.95 | 8.3 | 8404 | 1.8 | 2356 | WD100-T3-022G/030P-B |
| TYCP5-450-30-25 | 450L | 30 | 25 | 54.5 | 31.2 | 92.9 | 0.95 | 8.3 | 11460 | 1.8 | 3321 | WD100-T3-030G/037P |
| TYCP5-500-30-25 | 500M | 30 | 25 | 54.5 | 31.2 | 92.9 | 0.95 | 8.3 | 11460 | 1.8 | 3417 | WD100-T3-030G/037P |
| TYCP5-500-37-25 | 500M | 37 | 25 | 66.9 | 38.3 | 93.3 | 0.95 | 8.3 | 14134 | 1.8 | 3600 | WD100-T3-037G/045P |
| TYCP5-500-45-25 | 500L | 45 | 25 | 81.2 | 46.4 | 93.6 | 0.95 | 8.3 | 17190 | 1.8 | 3812 | WD100-T3-045G/055P |
| TYCP5-560-45-25 | 560M | 45 | 25 | 81.2 | 46.4 | 93.6 | 0.95 | 8.3 | 17190 | 1.8 | 3842 | WD100-T3-045G/055P |
| TYCP5-560-55-25 | 560M | 55 | 25 | 98.9 | 56.5 | 93.9 | 0.95 | 8.3 | 21010 | 1.8 | 5320 | WD100-T3-055G/075P |
| TYCP5-560-75-25 | 560L | 75 | 25 | 134.6 | 76.9 | 94.1 | 0.95 | 8.3 | 28650 | 1.8 | 6102 | WD100-T3-075G/090P |
| TYCP5-560-90-25 | 560L | 90 | 25 | 161.3 | 92.2 | 94.2 | 0.95 | 8.3 | 34380 | 1.8 | 6658 | WD100-T3-090G/110P |
Data in the table are sourced from Wolong's "TYCP5 Series Low-Speed Permanent Magnet Direct Drive System" product catalog. Rated voltage: 380V/660V; Power factor: 0.95; Maximum torque multiplier: 1.8. The same model can be paired with either the WD100-T3 (380V) or WD100-T6 (660V) dedicated vector frequency converter series. Representative compatible models are listed. If no suitable specification is available, custom designs can be provided based on user requirements.
TYCP5 Series V1 Motor Installation and Dimensions Table
← Swipe left or right to view full parameters; first column is fixed
| Housing Size | D | E | F | G | M | N | P | S | HD | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 180M | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 18.5 | 458 | 655 |
| 180L | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 18.5 | 458 | 693 |
| 200M | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 18.5 | 526 | 796 |
| 200L | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 18.5 | 526 | 821 |
| 225M | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 18.5 | 580 | 846 |
| 225L | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 18.5 | 580 | 871 |
| 250M | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 18.5 | 696 | 929 |
| 250L | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 18.5 | 696 | 963 |
| 280M | 75 | 140 | 20 | 67.5 | 500 | 450 | 550 | 18.5 | 723 | 1007 |
| 280L | 75 | 140 | 20 | 67.5 | 500 | 450 | 550 | 18.5 | 723 | 1055 |
| 315M | 80 | 170 | 22 | 71 | 600 | 550 | 660 | 24 | 850 | 1220 |
| 315L | 80 | 170 | 22 | 71 | 600 | 550 | 660 | 24 | 850 | 1320 |
| 355M | 95 | 170 | 25 | 86 | 740 | 680 | 800 | 24 | 999 | 1462 |
| 355L | 95 | 170 | 25 | 86 | 740 | 680 | 800 | 24 | 999 | 1502 |
| 400M | 110 | 150 | 28 | 100 | 940 | 880 | 1000 | 28 | 1171 | 1600 |
| 400L | 110 | 150 | 28 | 100 | 940 | 880 | 1000 | 28 | 1171 | 1632 |
| 450M | 110 | 150 | 28 | 100 | 1130 | 1080 | 1180 | 28 | 1330 | 1682 |
| 450L | 150 | 180 | 36 | 138 | 1130 | 1080 | 1180 | 28 | 1330 | 1712 |
| 500M | 150 | 180 | 36 | 138 | 1310 | 1260 | 1360 | 34 | 1520 | 1739 |
| 500L | 150 | 180 | 36 | 138 | 1310 | 1260 | 1360 | 34 | 1520 | 1780 |
| 560M | 150 | 180 | 36 | 138 | 1500 | 1450 | 1550 | 34 | 1716 | 1804 |
| 560L | 180 | 180 | 45 | 165 | 1500 | 1450 | 1550 | 34 | 1716 | 1839 |
Cooling method: IC10. D = shaft extension diameter, E = shaft extension length, F = key width, G = distance from shaft end to bottom of keyway, M = flange outer diameter, N = flange mating diameter, P = flange bolt circle, S = flange hole diameter, HD = height from centerline to top, L = overall length. All dimensions are in mm. If suitable mounting, cooling, or dimensional specifications are not listed in the table, custom designs can be provided based on user requirements.
Download
Wolong Electric Drive TYCP5 Series Low-Speed Permanent Magnet Direct-Drive MotorProduct Catalog (PDF) – Download for full technical specs, installation dimensions, and selection tables.
Wolong Electric Drive TYCP5 Series Low-Speed Permanent Magnet Direct-Drive MotorProduct Catalog
PDF Document · Free Public Download
